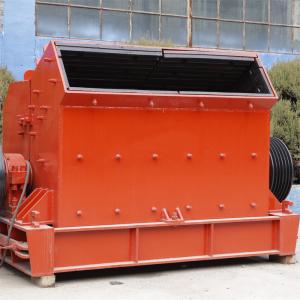

Limestone 500x510mm 11kw Mining Hammer Crusher
Product Description
Hammer crusher is suitable for crushing medium-hardness materials such as limestone, slag, coke, coal, glass, clinker and so on. It has the advantages of simple structure, large crushing ratio and high production efficiency, which can break both dry and wet forms., Hammer Crusher can adjust grate strip gap according to change the size of the material which can meet the different needs of different users.
| Name | Limestone 500x510mm 11kw Mining Hammer Crusher |
| Power | 11kw |
| Material | Limestone |
Technical Specifications and Performance
| Basic parameters | Φ 500 | Φ 650 | Φ 750 | Φ 1000 | Φ 1250 |
| Inner diameter and height of crusher barrel mm | Φ 5OO*510 | Φ 650*830 | Φ 750*778 | Φ 1000*900 | Φ 1250*1235 |
| Maximum feeding size | ≤40 | ≤ 50 | ≤ 50 | ≤60 | ≤ 80 |
| Material size | ≤ 5 | ≤5 | ≤ 5 | ≤ 5 | ≤ 6 |
| Production capacity (approximately) | 1-3t/h | 5-9t/h | 10-15t/h | 12-20t/h | 30-45t/h |
| Rotation speed of vertical shaft r/min | 850 | 960 | 730 | 680 | 420 |
| motor model | Y160M-4-11KW | Y200L-6-18.5KW | Y200L-4-30KW | Y280M-6-55KW | Y315S-6-75KW |
| Dimensions (L*W*H) mm | 700*800*850 | 1300*1000*1250 | 2365*1020*1360 | 1735*1200*1310 | 3155*2096*1710 |
| Weight (without motor) | 0.7t | 1.5t | 2t | 2.5t | 6.35t |
Note:Productivity affected by the granularity and hardness of the material to be broken.The greater the granularity and hardness are, the lower the output is Or, on the contrary. The productivity index above is just for reference by users.
Company introduction
Tangshan mining machinery factory is a professional factory that produces complete sets of equipment for metallurgy, mining, building materials, environmental protection and design and manufacture of complete sets of sand and stone materials, and design and manufacture of dry tailings discharge. The company was established in 1971 and restructured into a joint-stock enterprise in 1997.
The company covers an area of more than 50 mu, the total assets of 90 million yuan, more than 200 employees, including 96 engineering and technical personnel.
Various processing and testing equipment :8 meters, 5 meters, 4 meters vertical lathe, 8 meters, 5 meters, 3.15 meters gear hobbing machine, 6 meters planer, precision boring machine, medium frequency quenching and other large processing equipment and automatic welding, ultrasonic welding flaw detector more than 300 sets, W15-23 material testing machine, aging vibration device, etc.
The main products are: all kinds of models and specifications of Jinma brand crusher, ball mill, classifier, magnetic separator, dewatering screen, linear screen, screen machine, feeder, vertical roller mill, etc.hem, 17 products have obtained national patents. Among them, the crusher and ball mill have won many national honors.
