ISO9001 Mobile Impact Jaw Crusher With High Feeding Capacity
Characteristic And Uses
This machine adopts newest standard which optimized designed by the computer. And enjoys the advantages of simple structure, high yield, low energy convenient use, etc And it is the present domestic most advanced type suitable for various mineral and rock for rough and middle crush work with the compressive strength below 250 Mpa.
Features
1. The broken cavity is deep and without dead area, which increases the feeding capacity and output.
2. High-manganese steel are used for liners;
3. The size reduction ratio is big.
4. High rotation speed of movable jaw and the arc jaw plate design increase production capacity.
5. Lubrication system of jaw crusher is safe and reliable.
6. The adjustment range of the outlet is big what improves the flexibility of equipment and also satisfies the requirements of different customers.
| Name | ISO9001 Mobile Impact Jaw Crusher With High Feeding Capacity |
| Model | Impact Jaw Crusher |
| Certification | ISO9001 |
Technical Specifications and Performance
| Basic parameters | Inlet port width mm | Inlet port length mm | Maximum feeding size mm | Discharge port adjustment range mm | Production capacity t/h | Motor Power kw | Machine Weight t | Dimensions mm |
| PE250x400 | 250 | 400 | 210 | 20-60 | 4-14 | 15 | 3 | 1450X1350X1400 |
| PE250X500 | 250 | 500 | 210 | 20-60 | 5-16 | 18.5 | 4.1 | 1320x1400x1320 |
| PE400X600 | 400 | 600 | 340 | 35-85 | 8-25 | 30 | 6.95 | 1700x1800x1650 |
| PE500X750 | 500 | 750 | 425 | 50-100 | 30-70 | 55 | 10.5 | 2118x1962x1843 |
| PE600X900 | 600 | 900 | 500 | 75-125 | 40-100 | 75 | 20 | 2600x2180x2325 |
| PE750X1060 | 750 | 1060 | 630 | 80-140 | 80-180 | 95 | 25.5 | 2550x2322x3110 |
| PE900X1200 | 900 | 1200 | 750 | 95-165 | 200-290 | 110 | 49.5 | 3110x3026x3280 |
| PE1200x1500 | 1200 | 1500 | 950 | 160-280 | 300-500 | 200 | 88 | 4590x3272x4033 |
| PEX150X750 | 150 | 750 | 120 | 15-45 | 5-14 | 15 | 3 | 1194x1531x1089 |
| PEX250X750 | 250 | 750 | 210 | 25-60 | 8-15 | 30 | 4.98 | 1520x1750x1270 |
| PEX250X1000 | 250 | 1000 | 210 | 25-60 | 10-25 | 30 | 6.34 | 1530x1992x1380 |
| PEX250X1200 | 250 | 1200 | 210 | 20-60 | 30-52 | 45 | 9.5 | 2300x2120x1500 |
Note
Productivity affected by the granularity and hardness of the material to be broken. The greater the granularity and hardness are, the lower the output is. Or, on the contrary, The productivity index above is just for reference by users.
Company introduction
Tangshan Mine Machinery Factory is a specialized manufacturer that produces complete sets of equipment for metallurgy, mining, building materials, environmental protection, as well as the design and manufacture of complete sets of sand and gravel materials, and the design and manufacture of dry tailings discharge. The company was founded in 1971 and turned into a joint-stock enterprise in 1997.
The company occupies more than 50 acres, with total assets of 90 million yuan and more than 200 employees, including 96 engineering and technical personnel.
Various processing and testing equipment: 8 meters, 5 meters, 4 meters vertical lathes, 8 meters, 5 meters, 3.15 meters gear hobbing machine, 6 meters planer, precision boring machine, medium frequency quenching and other larger processing equipment and automatic welding, ultrasonic welding More than 300 sets of flaw detectors, W15-23 material testing machines, aging vibration devices, etc.
The main products are: various models and specifications of Jinma brand crushers, ball mills, classifiers, magnetic separators, dewatering screens, linear screens, screening machines, feeders, vertical roller mills, etc.
Among them, 17 products have obtained national patents. Among them, the crusher and ball mill have won many national honors.
The products are sold all over the country and exported to Russia, Mongolia, South Korea, Chile and other international markets.
We are a member of the China Heavy Machinery Association, a member of the Crushing and Grinding Association, a member of the Mining Machinery Association, and a member of the China Building Materials Machinery Association. We have participated in the formulation of a number of equipment manufacturing standards.
The company's principles are: First-class talents, First-class management, First-class machine, First-class quality, First-class honor.
Sincerely hope to reach friendly cooperation with you.
Product Tags:
|
|

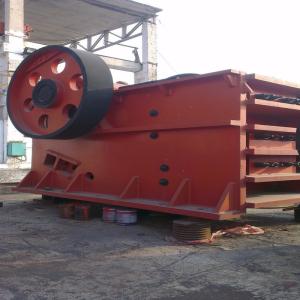

ISO9001 Mobile Impact Jaw Crusher With High Feeding Capacity Images
|
